FNS-DF300-10 Wet Electro Magnetic Separator
  • FNS-DF300-10 Wet Electro Magnetic SeparatorFNS-DF300-10 Wet Electro Magnetic Separator
  • FNS-DF300-10 Wet Electro Magnetic SeparatorFNS-DF300-10 Wet Electro Magnetic Separator
  • FNS-DF300-10 Wet Electro Magnetic SeparatorFNS-DF300-10 Wet Electro Magnetic Separator

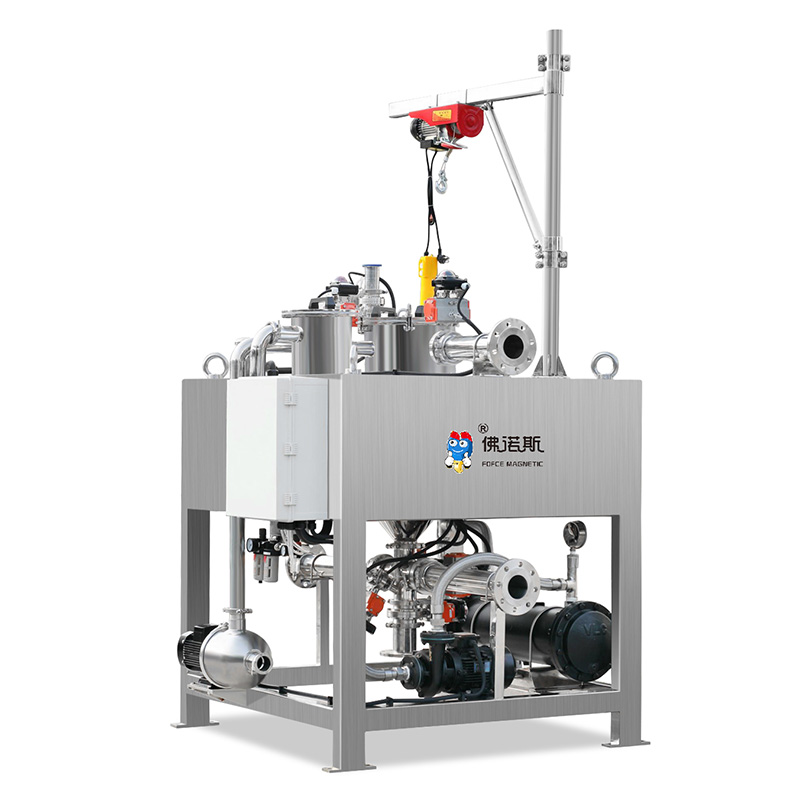

FNS-DF300-10 Wet Electro Magnetic Separator

The FNS-DF300-10 Wet Electro Magnetic Separator is engineered for superior efficiency and reliability, making it an ideal choice for various industries. Its advanced design ensures top-tier performance.
1. The Wet Electro Magnetic Separator features a dual cooling system design with water and oil, ensuring stable machine performance.
2. Intelligent control eliminates the need for manual supervision.
3. Uniform magnetic field distribution with a high gradient and low energy consumption.
4. Internal components use oxidized film coils, providing excellent temperature resistance, oxidation resistance, conductivity, and magnetic field performance.
5. Aesthetic design ensures easy cleaning with no residue left from demagnetized contaminants.
6. The cavity of the Wet Electro Magnetic Separator is made of food-grade SUS304 stainless steel, offering effective corrosion resistance.

The Force Magnetic Solution FNS-DF300-10 Wet Electro Magnetic Separator is a cutting-edge industrial solution designed to effectively remove magnetic impurities, such as iron particles, from wet materials. This technology leverages powerful magnetic fields to capture and separate magnetic contaminants from process streams, enhancing product purity and quality. Widely applicable in industries like mining, recycling, and food processing, the Wet Electro Magnetic Separator ensures efficient separation and reduced downtime, making it a valuable addition to any production line. Its reliable performance and user-friendly design contribute to its popularity and effectiveness.

Working Principle

The design principle of the Wet Electro Magnetic Separator primarily relies on the phenomenon of electromagnetic induction, generating an adjustable magnetic field through the energizing of the electromagnetic coil. This magnetic field, unlike traditional "electromagnets," is the key to efficiently capturing ferromagnetic impurities in wet materials.

When the material flows through the working area of the separator, the ferromagnetic impurities are attracted by the strong magnetic field and effectively separated, while non-magnetic materials remain unaffected and continue to flow out along their original path.

Wet Electro Magnetic Separator

Product schematic diagram

Wet Electro Magnetic Separator

Performance Parameters
Model Insulation category Power(kw) Magnetic
field(GS)
Pipe size Cooling method Capacity(L/h)
FNS-DCJL-160 E 3 2000 Customized Water and oil dual cooling 300
7 6000
10 12000
20 14000
FNS-DCJL-250 7 6000 500
10 12000
20 14000
FNS-DCJL-300 7 5000 800
10 8000
20 13000
FNS-DCJL-430 10 5000 1000
20 8000

Product Photograph

Professional quality exquisite craftsmanship

Wet Electro Magnetic Separator

Detail Display

Wet Electro Magnetic Separator

1. The electromagnetic coil is wound with imported oxygen-free copper wire, featuring low energy consumption, uniform magnetic field distribution, high intensity, excellent stability, and superior iron removal performance.

Wet Electro Magnetic Separator

2. The forced oil-water circulation cooling system ensures excellent heat dissipation. The entire oil-water pipeline is made of stainless steel, guaranteeing system cleanliness and maintenance-free operation.

Wet Electro Magnetic Separator

3. Unique medium mesh design.

Wet Electro Magnetic Separator

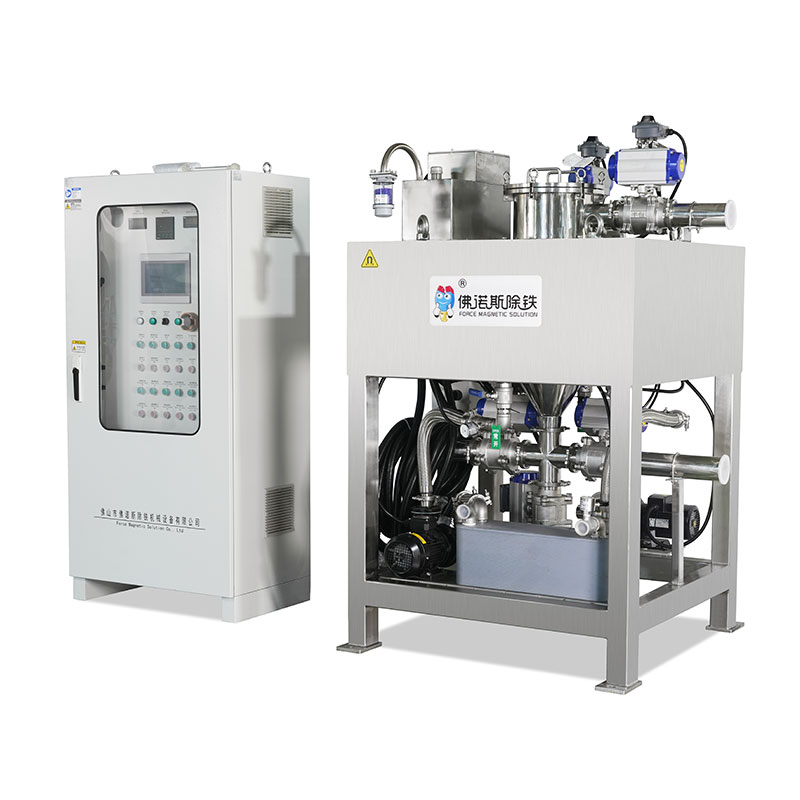

4. Equipped with a dedicated electrical control cabinet, featuring built-in PLC control and a touchscreen for easy, fast, and safe operation, enabling fully automated iron removal, cleaning, and continuous cycle operation.

Wet Electro Magnetic Separator

5. The entire machine is made of 304 stainless steel, offering an elegant appearance, rust prevention, and avoidance of secondary contamination.

Factory shooting

Exterior scene

Exterior scene

Workshop 1

Workshop 1

Workshop 2

Workshop 2

Workshop 3

Workshop 3

Office

Office

Warehouse

Warehouse

Company Honors

● High-Tech Enterprise
● Innovative Small and Medium-Sized Enterprise
● Certified ISO9001 Quality Management System
● Member of the Foshan Entrepreneurs Association
● Member of the Nanhai High-Tech Zone Chamber of Commerce
● Member of the Foshan Intellectual Property Association
● Certified China Online Marketing Credit Enterprise
● Outstanding Supplier at the 7th National Quartz Conference
● Dozens of Patented Products Available for Your Selection

Company HonorsCompany HonorsCompany HonorsCompany HonorsCompany HonorsCompany HonorsCompany HonorsCompany HonorsCompany HonorsCompany HonorsCompany HonorsCompany HonorsCompany HonorsCompany Honors
Company HonorsCompany Honors

Applications

Garbage sorting

Garbage sorting

Pharmaceutical industry

Pharmaceutical industry

Quartz sand

Quartz sand

Mining equipment

Mining equipment

Energy and Environmental Protection

Energy and Environmental Protection

Sewage disposal

Sewage disposal

Battery material

Battery material

Food industry

Food industry

Rubber and plastic materials

Rubber and plastic materials
