Magnetic Separation Grids

The Magnetic Separation Grids are designed to provide powerful separation of ferromagnetic materials, offering high performance and flexibility.
1. Withstands temperatures up to 300°C;
2. High magnetic strength for effective separation of ferromagnetic materials;
3. Customizable to meet specific requirements.

Force Magnetic Solution presents a customized Magnetic Separation Grid solution that effectively removes fine iron particles and other tiny magnetic impurities from a diverse range of free-flowing powders and granular materials. Irrespective of whether it's in the food, chemical, plastic, mineral, or any other industry, our Magnetic Separation Grids offer a reliable means of eliminating harmful tramp metal and minimizing ferrous contaminants. We prioritize delivering exceptional value, ensuring that our Magnetic Separation Grids not only exhibit efficient performance but also maintain cost-effectiveness. Their design is optimized for seamless integration into the product flow, negating the need for magnetic fields to penetrate through thick material layers. By leveraging our Magnetic Separation Grids, customers can guarantee the purity and quality of their products while minimizing downtime and operational costs.

Working Principle

The Magnetic Frame uses a strong magnetic field to attract ferromagnetic contaminants from the material. When the material comes into contact with the magnetic frame, ferromagnetic substances are attracted to the surface of the frame, while non-magnetic materials continue to flow.

Great Separator

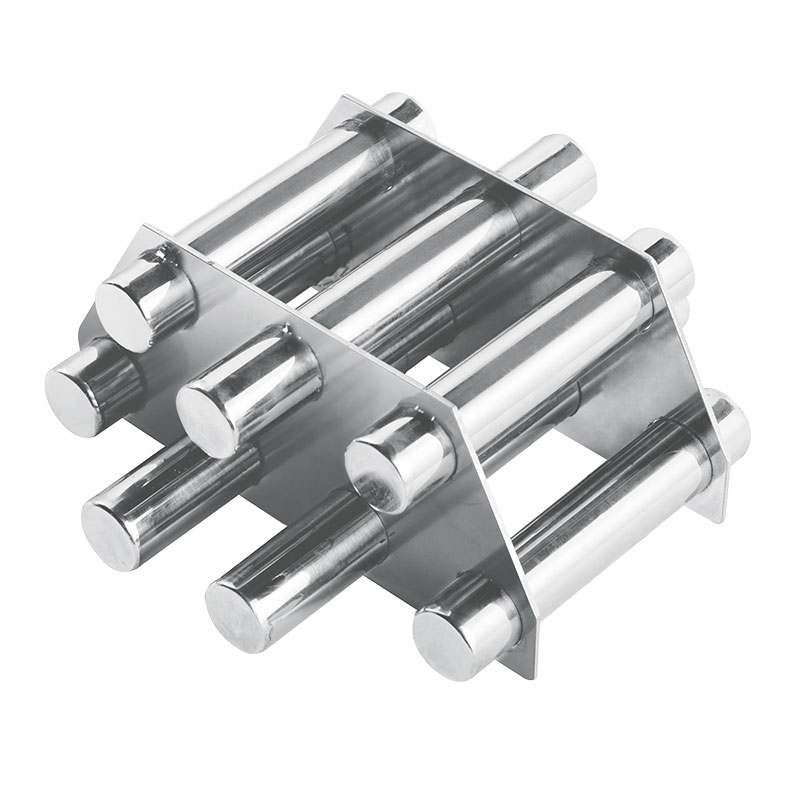

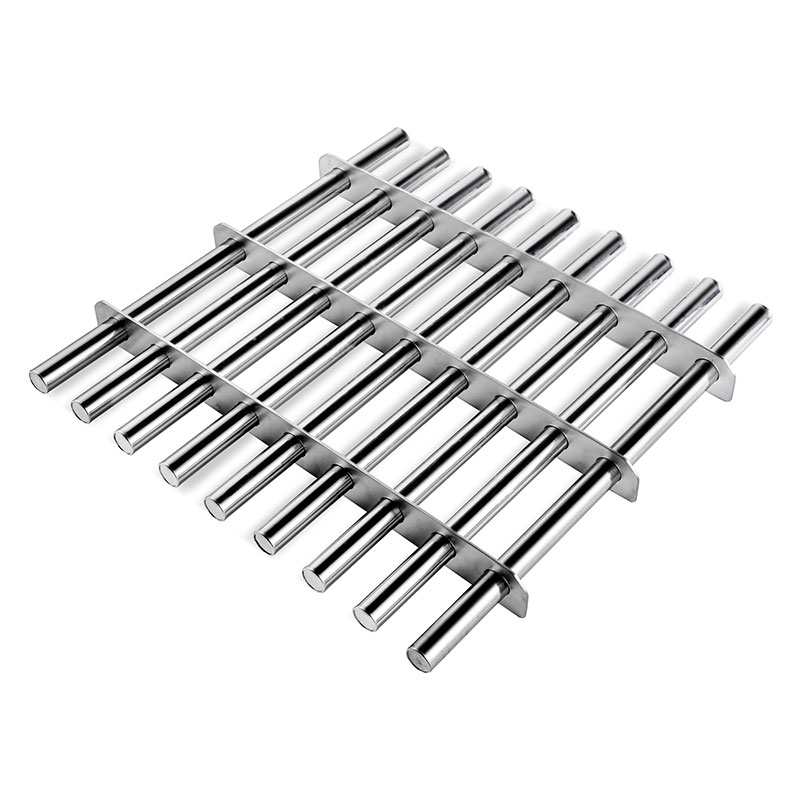

Force magnetic Solution Easy Clean Magnetic Grate Separator Details

1.The Easy Clean Magnetic Grate Separator is designed to eliminate ferrous contaminants from storage containers, drawers, and hoppers.
2. You can choose from 304 or 316L stainless steel options for the pipeline material, ensuring excellent corrosion resistance and minimal pollution.
3. The frame and magnetic bar surfaces of the Easy Clean Magnetic Grate Separator can undergo fine polishing to meet the stringent standards of the food and pharmaceutical industries.
4. Experience continuous separation without incurring operating costs with the Easy Clean Magnetic Grate Separator.

Product schematic diagram

Great Separator

Performance Parameters
Model Diameter(mm) Pipe Number Materials Performance(GS)
FNS-CLJ-3 Φ20/Φ22/Φ25/Φ30/Φ32 3 201#/304# 1000-12000
FNS-CLJ-5 Φ20/Φ22/Φ25/Φ30/Φ32 5 201#/304# 1000-12000
FNS-CLJ-7 Φ20/Φ22/Φ25/Φ30/Φ32 7 201#/304# 1000-12000
FNS-CLJ-9 Φ20/Φ22/Φ25/Φ30/Φ32 9 201#/304# 1000-12000
FNS-CLJ-11 Φ20/Φ22/Φ25/Φ30/Φ32 11 201#/304# 1000-12000
FNS-CLJ-13 Φ20/Φ22/Φ25/Φ30/Φ32 13 201#/304# 1000-12000
FNS-CLJ-15 Φ20/Φ22/Φ25/Φ30/Φ32 15 201#/304# 1000-12000
Specification can be customized

Product Photograph

Professional quality exquisite craftsmanship

Great Separator

Detail Display

Great Separator

1. The shape can be customized as square or round according to the hopper shape and size.

Great Separator

2. The number of layers can be one, two, or three, depending on the requirements.

Great Separator

3. The magnetic strength can be selected as standard magnetic or strong magnetic, depending on the requirements.

Great Separator

4. Clamps can be added or a pull-out, easy-to-clean design can be provided according to requirements.
