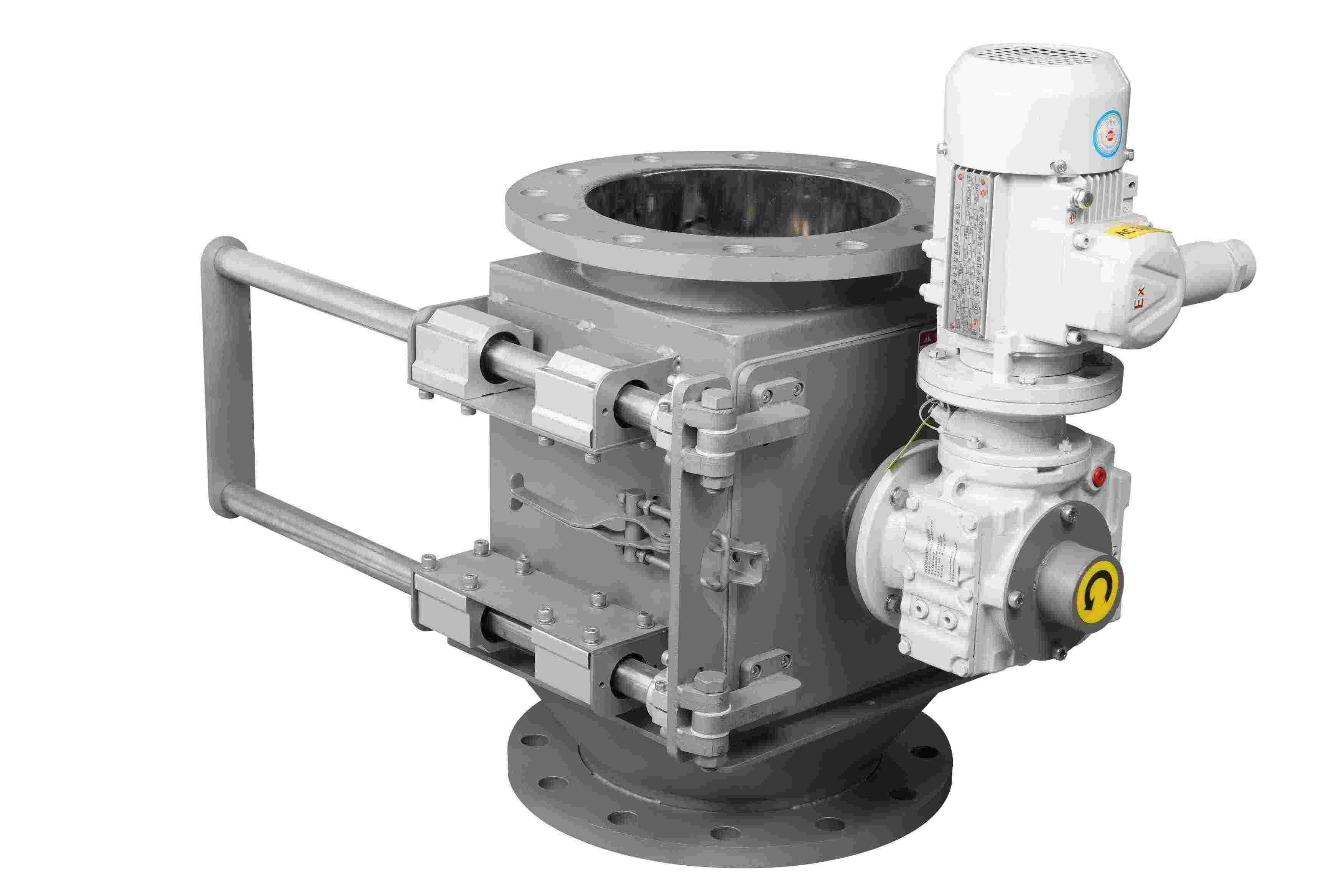

Rotary Pipeline Magnetic Separator

Rotary Pipeline Magnetic Separator is designed for efficient magnetic separation in pipeline systems, ensuring high-performance operation for various material flows.
1. Easy to clean and install;
2. The maximum magnetic field can reach 14000GS, the working temperature of ordinary products is ≤80℃, and the maximum working temperature can reach 350℃ under special requirements;
3. The number of magnetic bars can be adjusted according to the characteristics of the material;
4. The inlet and outlet can be designed as flange or square interface, which can be easily installed on various pipelines;
5. The rotating magnetic rod can prevent the material from agglomerating and clogging.

You can rest assured to buy DN200 Magnetic Separator from our factory. Force Magnetic Solution Rotary Grate Magnet Separators find extensive application across various industries including building materials, chemicals, mining, food processing, refractories, and pharmaceuticals. Rotary Grate Magnet Separators are specifically engineered to eliminate iron contaminants from powdered or granular materials. These separators are particularly effective for materials with high viscosity or poor flowability that tend to clump or form bridges.

Working Principle

The DN200 Magnetic Separator works by rotating magnetic rods installed in the pipeline. These magnetic rods generate a powerful magnetic field that attracts ferromagnetic materials from the flowing material. During operation, the material flows through the area surrounding the magnetic rods, and the rods continuously rotate to prevent the accumulation and blockage of ferromagnetic substances. The rotation of the magnetic rods causes the magnetic field to fluctuate, which enables the efficient and uniform separation of impurities from the material without affecting the flow of the material. In this way, the Rotary Magnetic Separator effectively removes ferrous contaminants while maintaining high production efficiency and a long service life.

Rotary Grate Magnet Separators

Force magnetic Solution Rotary Grate Magnet Separators Details

1. The rotating magnetic rod can prevent the material from agglomerating and clogging.
2. The internal magnetic bars of the rotary grate magnet separators can be designed as a complete set of tubes, making cleaning more convenient.
3. The feeding and discharging interface of the rotary grate magnet separators can be customized according to the size of the on-site pipeline.

Product schematic diagram

Rotary Grate Magnet Separators

Performance Parameters
Model Dimension(mm) Power(kw) Magnetic bar qty(pc) Weight(kg)
ΦFlange Flange Length Flange Width Height
FNS-XZ-159 159 205 208 500 0.37 7 43
FNS-XZ-200 219 257 262 500 0.37 9 54
FNS-XZ-250 273 310 308 580 0.37 11 62
FNS-XZ-300 300 355 358 600 0.37 13 72
FNS-XZ-350 350 405 408 650 0.37 15 84

Product Photograph

Professional quality exquisite craftsmanship

Rotary Grate Magnet Separators

Detail Display

Rotary Grate Magnet Separators

1. Quick-disconnect structure for easy installation and cleaning.

Rotary Grate Magnet Separators

2. The magnetic intensity can reach up to 13,000 GS.

Rotary Grate Magnet Separators

3. An accordion cover can be installed upon request to prevent metal foreign objects.

Rotary Grate Magnet Separators

4. The inlet and outlet can be connected with flanges or clamps, making it easy to install on various pipelines.

Rotary Grate Magnet Separators

5. The surface treatment of the equipment, both inside and outside, can be selected from options such as coating (tungsten carbide PTFE, ECTFE), mirror finish, or sandblasting.

Rotary Grate Magnet Separators

6. The motor can be selected as either an explosion-proof motor or a standard motor (Grade 2 or Grade 3 energy efficiency).
