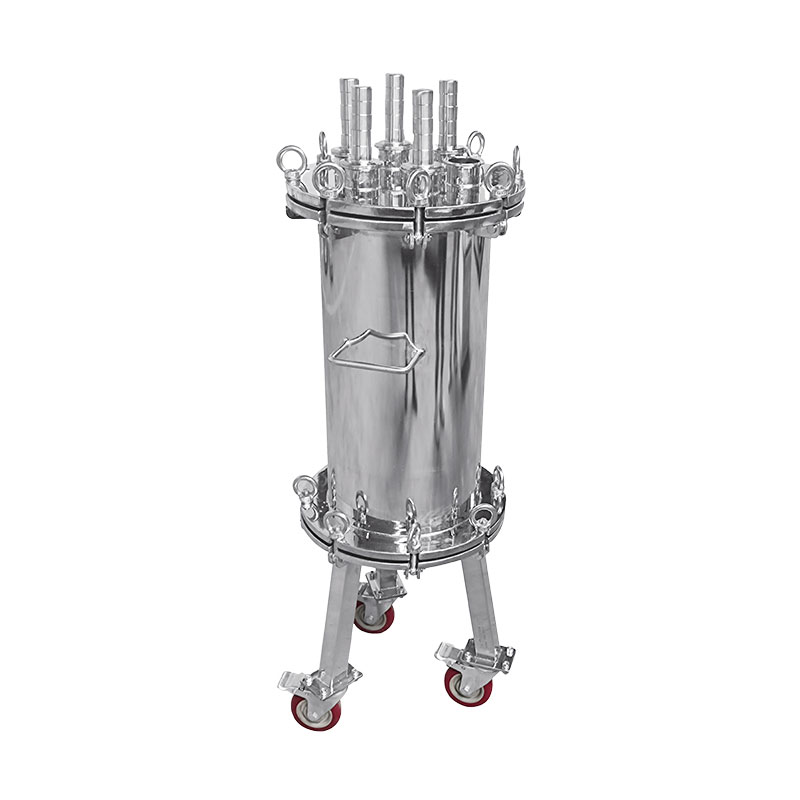

The Force Magnetic Solution Magnet Strainer offers an effective means of separating iron particles and stainless powder from wet or liquid materials. Constructed with high-performance neodymium magnets, our magnetic strainer is tailored to fulfill even the most rigorous magnetic separation needs. Moreover, magnetic strainer design ensures ease of installation and maintenance, making it a reliable choice for various industrial applications.
When the liquid or gas containing impurities enters the filter, the material passes through the five pipes, and the filtering media removes the solid particles and impurities. After passing through all five pipes, the purified material is discharged through the outlet. This equipment improves filtration efficiency by operating multiple pipes simultaneously.
| Performance Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Diameter（mm） | Pressure（Mpa） | Surface treatment | In&outlet pipe diameter（mm） | Specification（mm） | Magnetic bar qty（pc） | Performance（GS） | Height（mm） |
| FNS-GL-273 | Φ273 | 0-0.6 | Mirrored polish | Φ76 | Φ32*500 | 5 | ≥12000 | 1066 |
| FNS-GL-290 | Φ290 | 0-0.6 | Mirrored polish | Φ63.5 | Φ32*500 | 5 | ≥12000 | 1147.4 |
1.The Magnet Strainer's inlet and outlet can be customized according to OEM specifications.
2.A diverse range of magnetic tube options is available to choose from.
3.The complete shield design ensures compliance with even the strictest food-grade processing standards.
4.A double tubing configuration is offered for convenient cleaning.
1.Employing NdFeB, the magnetic field intensity exceeds 12000GS, ensuring superior magnetic separation performance.
2.The working pressure capabilities surpass 10 atmospheric pressure, making it suitable for high-pressure applications.
3.Operating within a temperature range of 80-120 centigrade, it maintains consistent performance under varying conditions.
4.Installation is straightforward, resulting in reduced working intensity and increased efficiency.
5.We customize our products according to customers' specific requirements, ensuring a tailored solution for each application.
6.The pipe material is made of high-quality 304 Stainless steel or SUS316L, with the option of a mirror finish for both the interior and exterior, enhancing aesthetics and durability.
