The Force Magnetic Solution magnetic head pulley stands as the top choice for a wide array of industries, from food processing plants to recycling facilities, and it includes a 1-year warranty for added assurance. Crafted from high-performance neodymium magnets, our magnetic head pulley is engineered to surpass even the most rigorous magnetic separation needs. Its seamless installation and hassle-free maintenance make it an ideal solution for various applications.

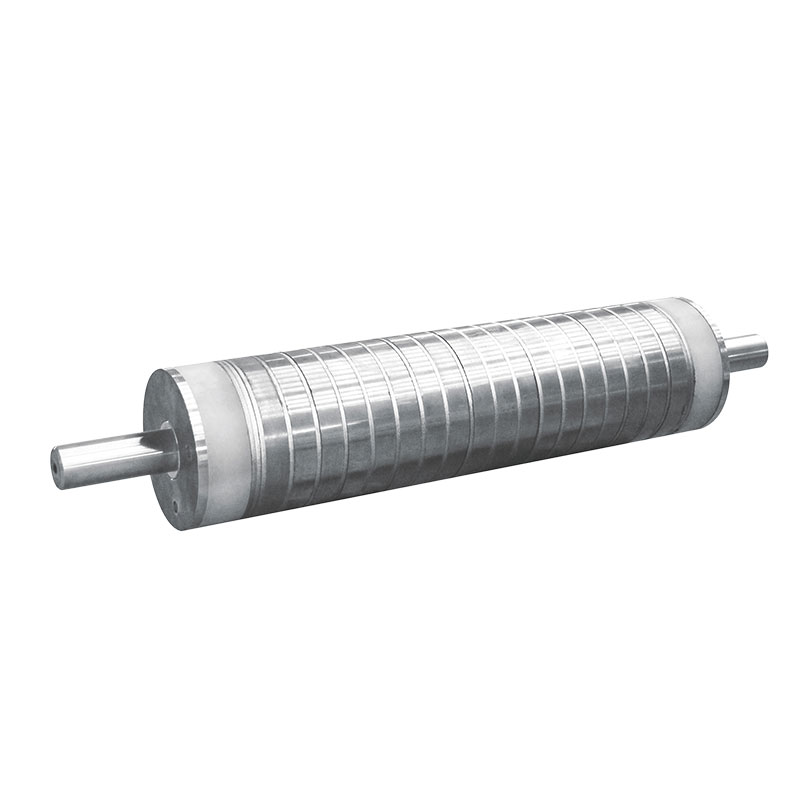

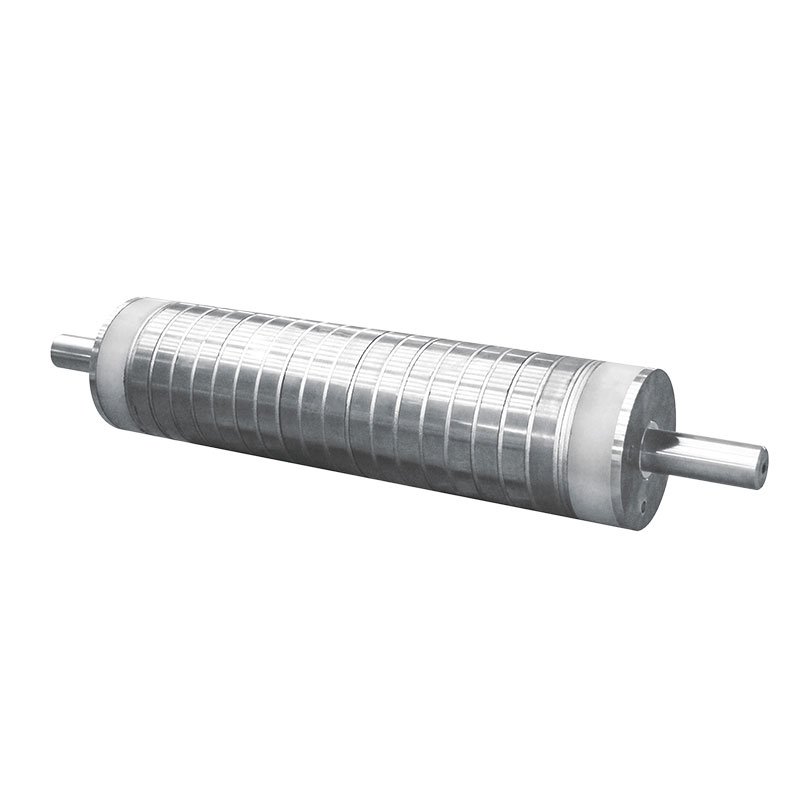

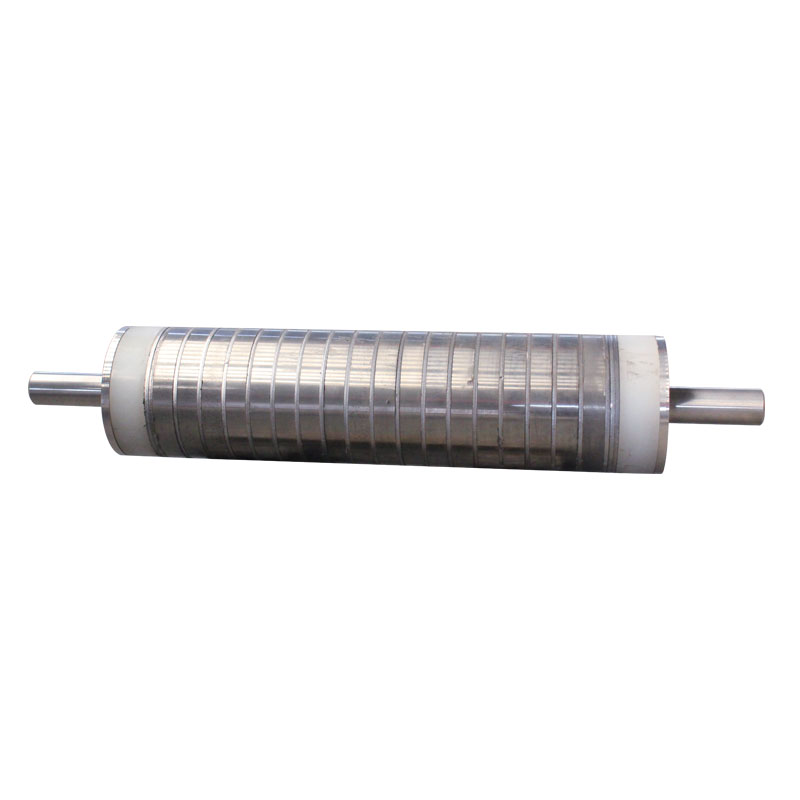

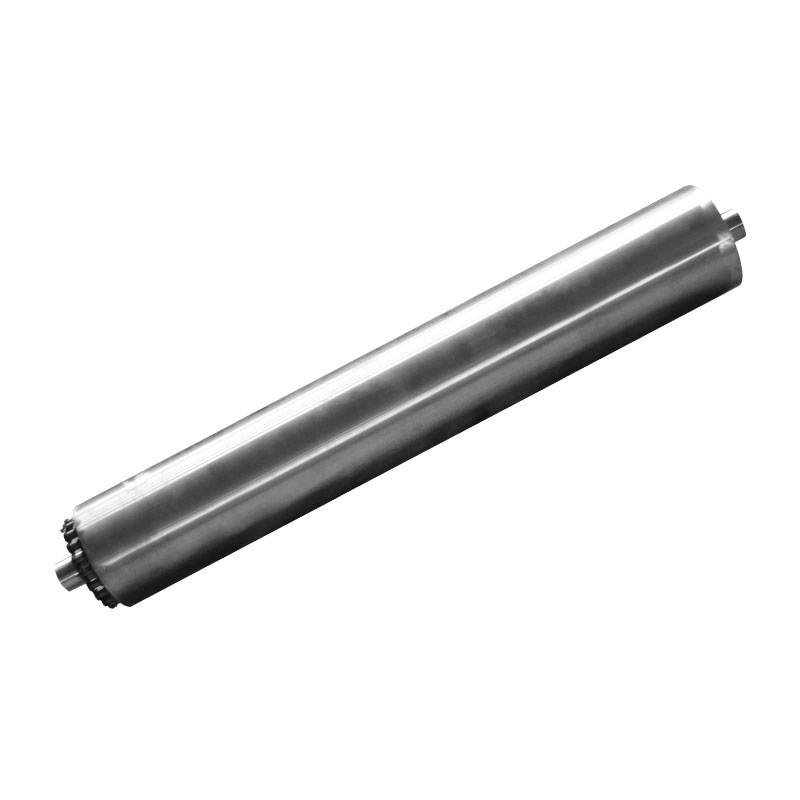

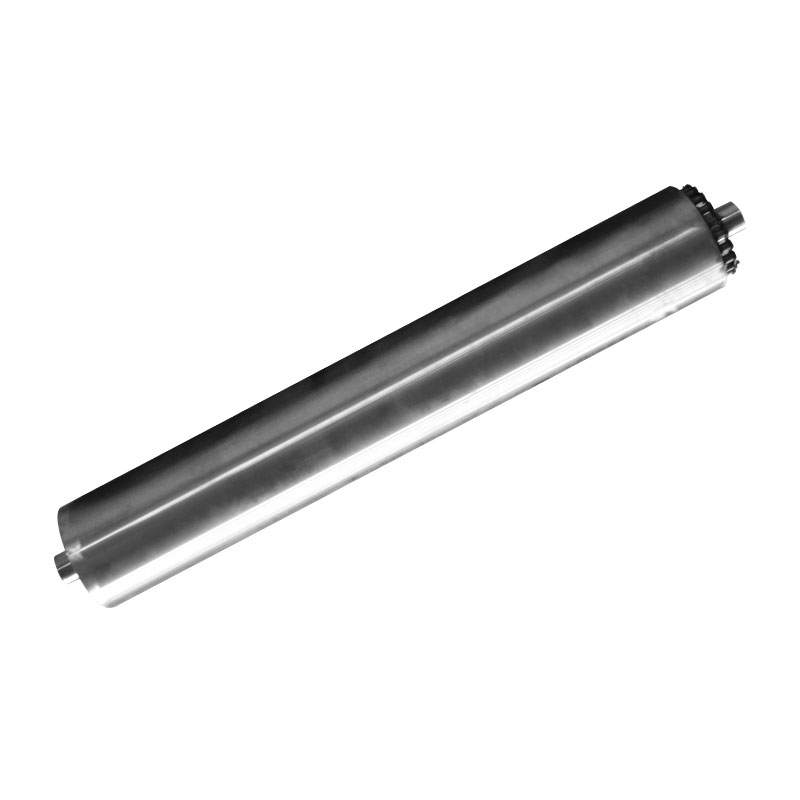

Magnetic Head Pulley use a permanent magnetic field to separate ferromagnetic materials. The device consists of a permanent magnet and a rotating drum. As the material passes through the drum, ferromagnetic substances are attracted to the surface of the drum by the magnetic field. This process is efficient, energy-free, and pollution-free, allowing the Magnetic Head Pulley to effectively remove ferromagnetic contaminants. With the use of high-performance rare earth alloy neodymium magnets as the magnetic source, the equipment has strong magnetic force, enabling it to handle fine ferromagnetic materials while maintaining a long service life.
1. hen material contaminated with tramp iron enters the magnetic field of the pulley, the iron is drawn towards the belt and remains attached until reaching the underside of the pulley. Upon exiting the magnetic field, the tramp iron is discharged separately, while the purified, non-magnetic material continues along its regular path over the pulley.
2. Customize your solution to exact specifications by choosing from a variety of sizes and magnet strengths.
3. With Force Magnetic Solution's magnetic head roller separator, magnetic fields are generated by magnets, resulting in efficient energy usage and cost savings.
4. Engineered with connections at both ends, our design facilitates effortless attachment to the motor, ensuring streamlined operation.
| Performance Parameters | ||||||
|---|---|---|---|---|---|---|
| Model |
Performance （GS） |
Materials |
Diameter （mm） |
Length A （mm） |
Length B （mm） |
Length C （mm） |
| FNS-QCG-60 | 10000 | 201#/304# | Φ60 | 200 | 500 | 800 |
| FNS-QCG-100 | 11000 | 201#/304# | Φ100 | 300 | 450 | 700 |
| FNS-QCG-120 | 13000 | 201#/304# | Φ120 | 400 | 750 | 1000 |
| FNS-QCG-150 | 15000 | 201#/304# | Φ150 | 250 | 430 | 600 |
| FNS-QCG-159 | 4500 | 201#/304# | Φ159 | 280 | 420 | 730 |
| FNS-QCG-219 | 4500 | 201#/304# | Φ219 | 300 | 480 | 850 |
| FNS-QCG-300 | 4500 | 201#/304# | Φ300 | 300 | 500 | 1200 |
Professional quality exquisite craftsmanship
1. The diameter and length can be customized according to requirements.
2. The magnetic intensity can reach up to 15,000 GS.
3. The appropriate magnetic strength can be selected according to requirements.
Exterior scene
Workshop 1
Workshop 2
Workshop 3
Office
Warehouse
● High-Tech Enterprise
● Innovative Small and Medium-Sized Enterprise
● Certified ISO9001 Quality Management System
● Member of the Foshan Entrepreneurs Association
● Member of the Nanhai High-Tech Zone Chamber of Commerce
● Member of the Foshan Intellectual Property Association
● Certified China Online Marketing Credit Enterprise
● Outstanding Supplier at the 7th National Quartz Conference
● Dozens of Patented Products Available for Your Selection
Garbage sorting
Pharmaceutical industry
Quartz sand
Mining equipment
Energy and Environmental Protection
Sewage disposal
Battery material
Food industry
Rubber and plastic materials
