Magnetic Roller Separator
  • Magnetic Roller SeparatorMagnetic Roller Separator
  • Magnetic Roller SeparatorMagnetic Roller Separator
  • Magnetic Roller SeparatorMagnetic Roller Separator
  • Magnetic Roller SeparatorMagnetic Roller Separator
  • Magnetic Roller SeparatorMagnetic Roller Separator
  • Magnetic Roller SeparatorMagnetic Roller Separator

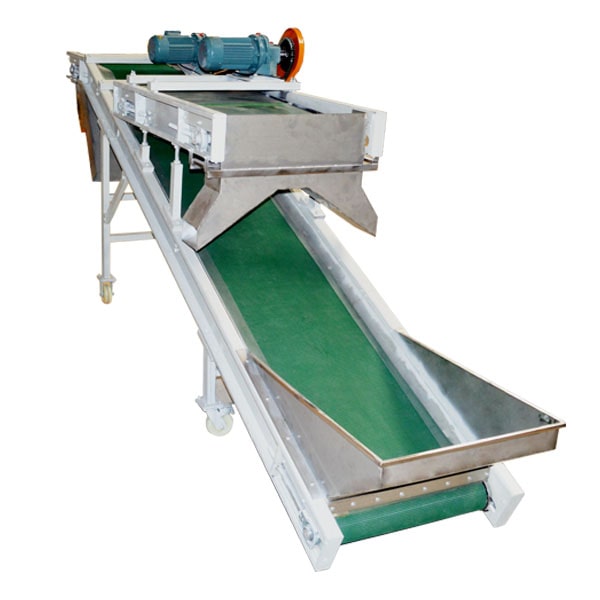

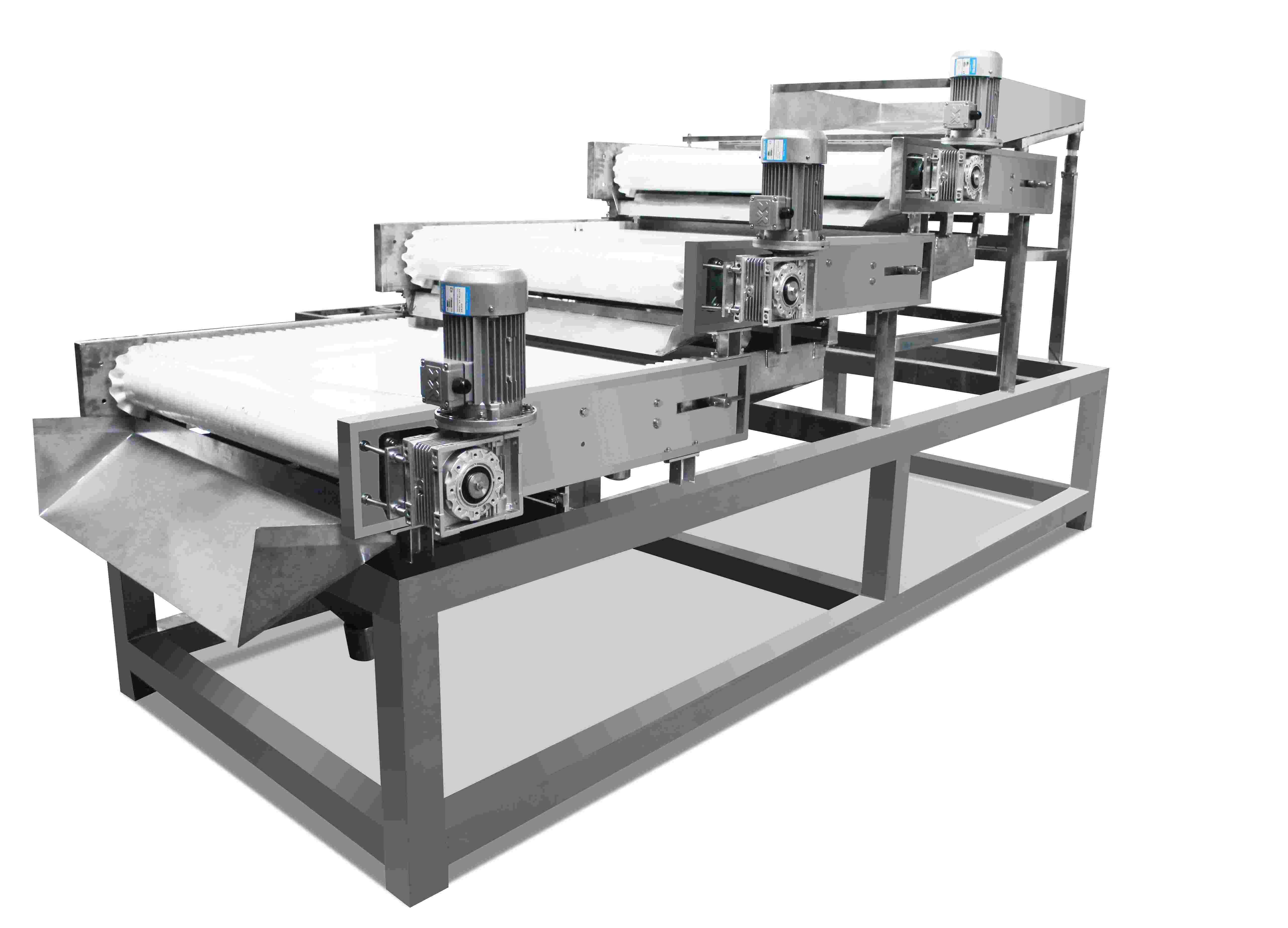

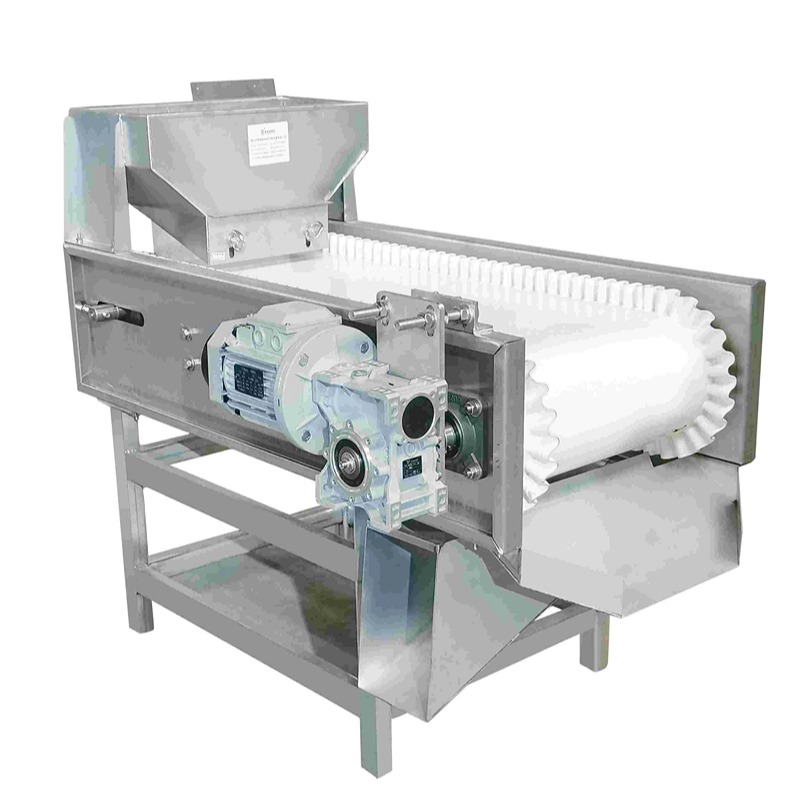

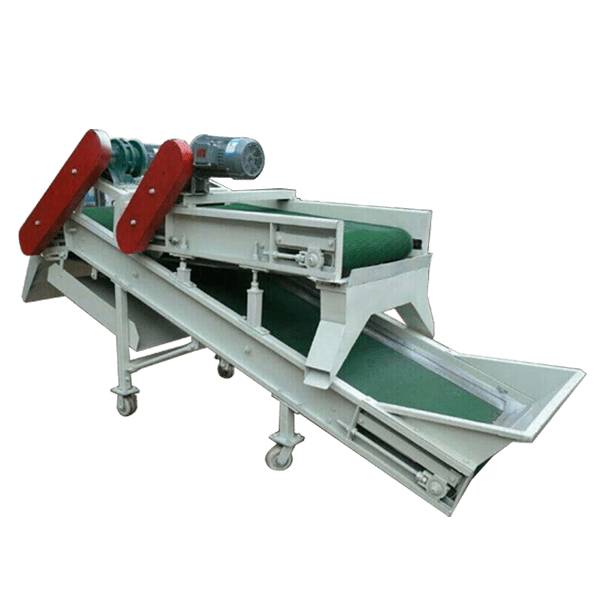

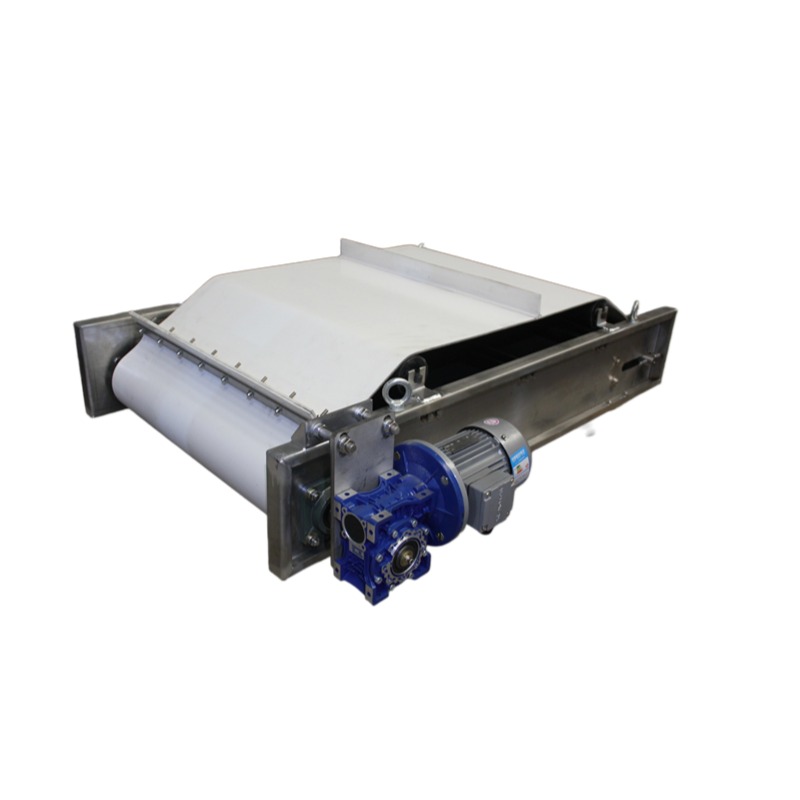

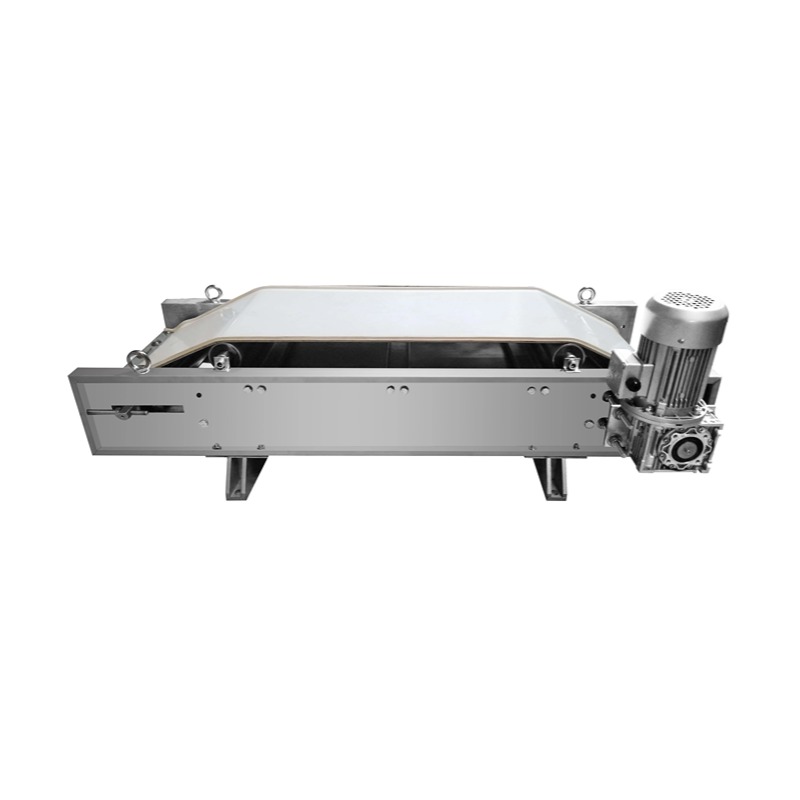

Magnetic Roller Separator

1.Magnetic strength can reach up to 15,000 GS;
2.Different performance options can be selected based on customer requirements and material types;
3.Conveyor belt is transmitted by stepless speed changing machine;
4.Input Voltage;380V/220V/410V.

Force Magnetic Solution stands as a leading manufacturer and supplier of Magnetic Roller Separators, designed to excel in applications such as mining, recycling, and food processing. Our Magnetic Roller Separator leverages advanced magnetic technology provides tailored solutions for efficiently removing ferrous contaminants from various materials. With extensive production capabilities and significant inventory, we ensure high-quality, reliable products that meet global standards. Our commitment to innovation has earned us recognition among clients worldwide, fostering enduring partnerships aimed at achieving mutual success in magnetic separation technology.


Working Principle

The belt magnetic separator uses a strong magnetic field to separate iron impurities from non-magnetic materials. The material is conveyed through the system and passes through a magnetic zone created by a powerful magnetic field. In this area, iron substances are attracted to the surface of the belt, while non-magnetic materials continue to pass through the equipment and are discharged. To maintain the efficient operation of the equipment, the belt magnetic separator is typically equipped with an automatic cleaning system. When a certain amount of iron impurities accumulates, the magnetic field is temporarily turned off, allowing the adsorbed iron impurities to automatically fall off and be removed through the cleaning system, ensuring stable and continuous operation of the equipment.


Product Schematic Diagram


Performance Parameters
Model Voltage(V) Specification(mm) Performance(GS) Belt width(mm) Capacity(T) Rack material A(mm) B(mm) C(mm)
FNS-QCKPD-100 380 Φ100*700 4500 700*2 1-3 steel 1500 850 1200
FNS-QCPD-100 380 Φ100*700 12000 700*2 1-3 steel 1500 850 1200
FNS-QCPD-150 380 Φ150*700 15000 700*2 1-3 steel 1500 850 1200
FNS-QCPD-159 380 Φ159*700 3000 700*2 1-3 steel 1500 850 1200
FNS-QCPD-219 380 Φ219*700 3000 700*2 1-3 steel 1500 850 1200
FNS-QCPD-300 380 Φ300*700 3000 700*2 1-3 steel 1500 850 1200
Magnetic roll separator specification can be customized



Force Magnetic Solution Magnetic Roller Separators Feature And Application


1.Magnetic power up to 15000GS,is an ideal machine for iron removing;

2.We choose different magnetic materials according to customer‘s requirement;

3.Conveyor belt is transmitted by stepless speed changing machine

4.Input Voltage:380V/220V/410
