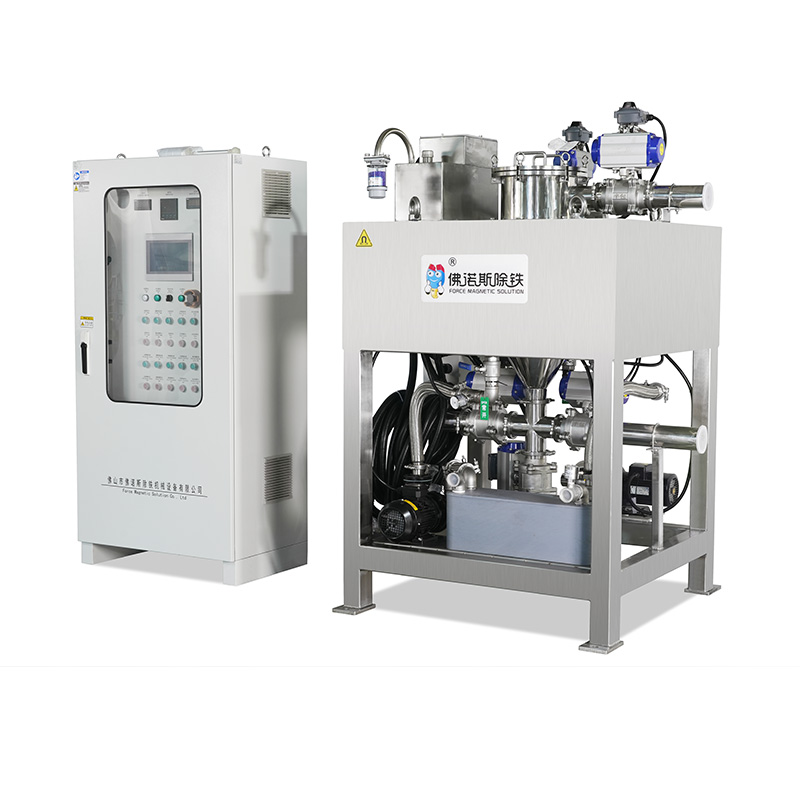

An Electro Magnetic Filter is a precision-engineered industrial filtration system designed to remove fine ferromagnetic and weakly magnetic particles from liquids such as cooling fluids, lubricants, slurries, and chemical mixtures. It operates by applying a controlled magnetic field that attracts and traps metallic contaminants, ensuring cleaner fluid circulation, extended equipment life, and improved product quality.
| Parameter | Specification |
|---|---|
| Filtration Accuracy | 1–30 microns (depending on model) |
| Magnetic Field Strength | 8,000–12,000 Gauss |
| Applicable Fluids | Water-based coolant, oils, cutting fluids, chemical solutions |
| Material Construction | Stainless steel chamber + high-grade magnetic rods |
| Operating Temperature | Up to 120°C |
| Flow Rate Capacity | 20–500 L/min |
| Power Supply | 220–380V depending on system design |
| Cleaning Method | Automatic or semi-automatic magnetic separation |
| Installation Mode | Inline or standalone modular system |
| Typical Industries | Metallurgy, ceramics, electronics, precision machining, chemical production |
These parameters demonstrate how the system delivers continuous filtration, optimized magnetic separation, and long operating cycles without manual intervention.
Why does contamination control matter?
Metallic contamination can cause equipment wear, reduced fluid efficiency, surface defects, and downstream operational failures. Industries with high precision requirements—electronics, ceramics, and automotive—rely heavily on clean fluids to maintain dimensional accuracy and production stability.
Why do Electro Magnetic Filters outperform traditional filters?
Conventional mesh, paper, and cartridge filters often struggle with ultra-fine particles and weakly magnetic contaminants. They also require frequent replacements, leading to downtime and consumable costs. In contrast, an Electro Magnetic Filter uses magnetic force rather than physical barriers, enabling:
Continuous capture of particles smaller than 10 microns
Zero consumables
High separation rates even in high-density slurries
Extended fluid lifespan
Consistent, repeatable filtration accuracy
Why is reliability enhanced?
The magnetic field produces stable attraction strength without performance decline. This ensures consistent filtration even in long production cycles or highly contaminated environments.
Why do industries value the economic impact?
Reduced tool wear, longer equipment life, lower energy consumption, and minimized downtime create measurable cost savings and higher productivity.
The working mechanism of an Electro Magnetic Filter is based on controlled magnetic flux pathways designed to efficiently capture metallic impurities during fluid circulation.
Fluid Entry:
Contaminated fluid flows into the stainless-steel chamber housing high-strength magnetic rods.
Magnetic Attraction:
The magnetic rods generate an intense magnetic field that draws ferromagnetic and weakly magnetic particles from the fluid stream. Even extremely fine powders are captured due to multi-stage magnetic gradients.
Particle Accumulation:
The contaminants adhere to the magnetic rods, forming a uniform layer without obstructing fluid flow.
Automatic Cleaning:
Depending on the model, the filter activates a cleaning cycle where the magnetic rods retract or demagnetize, releasing collected particles into a discharge chamber.
Clean Fluid Output:
The filtered fluid exits with significantly lower contamination levels, ensuring consistent operational quality.
High-Precision Filtration:
With accuracy down to 1 micron, Electro Magnetic Filters maintain superior cleanliness levels that standard filtration cannot achieve.
Consistent Fluid Quality:
Stable magnetic capture ensures constant separation performance, essential for precision machining, ceramic polishing, and electronic component manufacturing.
Extended Equipment Life:
Clean fluid reduces abrasive wear on equipment, cutting tools, and pumps, significantly reducing maintenance frequency.
Energy Efficiency:
Magnetic filtration reduces pressure drops associated with paper or mesh filters, allowing pumps to operate with less resistance.
Operational Automation:
Many systems offer automatic cleaning cycles, eliminating manual labor and reducing manufacturing interruptions.
Environmental Advantages:
No disposable filter media means reduced solid waste and lower environmental impact.
Industrial filtration is undergoing rapid transformation due to increasing precision demands, rising environmental standards, and automation trends. The Electro Magnetic Filter is positioned to evolve in several key directions:
Upcoming designs aim to achieve 15,000 Gauss and above, enabling even finer particle capture, particularly important for advanced ceramics and semiconductor manufacturing.
Integrated sensors will allow:
Real-time contamination monitoring
Predictive maintenance alerts
Automatic flow adjustment
Integration with digital factory systems
Smart filtration will significantly reduce downtime and human error.
Future Electro Magnetic Filters will support modular expansion so facilities can scale filtration capacity without full replacement. This flexibility suits growing industries with evolving output demands.
Environmental regulations will drive innovations that further reduce waste and improve energy efficiency. Filtration systems will emphasize:
Zero consumables
Lower energy consumption
Recyclable captured contaminants
Improved heat-resistant materials
Q1: What types of contaminants can an Electro Magnetic Filter remove?
A1: Electro Magnetic Filters remove ferromagnetic and weakly magnetic particles, including iron powder, steel chips, rust, machining residue, and metal oxides. They are especially effective for ultra-fine particles smaller than 10 microns, which traditional filters fail to capture. Non-magnetic particles may also be indirectly removed if they bond to magnetic particles within the fluid flow.
Q2: How often does an Electro Magnetic Filter need maintenance?
A2: Maintenance frequency depends on contamination levels and operating cycles. However, most systems feature automatic or semi-automatic cleaning, reducing manual maintenance significantly. In high-density slurry environments, cleaning cycles may occur once every few hours, while low-contamination systems may require cleaning only once per shift. The magnetic rods are designed for long-term stability, ensuring consistent performance with minimal intervention.
Electro Magnetic Filters offer a high-efficiency solution for precision industrial filtration by effectively capturing fine metallic contaminants, enhancing fluid cleanliness, and improving equipment longevity. Their operational advantages—continuous filtration, automation, accuracy, and low maintenance—make them essential in industries where cleanliness and precision are critical. Future developments will continue to focus on stronger magnetic technology, smart control systems, modular architecture, and environmentally sustainable designs.
As a trusted industrial filtration partner, Force continues to innovate Electro Magnetic Filter solutions that match evolving global requirements. For detailed specifications, system customization, or technical consultation, contact us to explore how these filtration systems can elevate industrial efficiency and product quality.
-
